SF2 ECCR SIDEMOUNT REBREATHER


The SF2 ECCR is certainly the most popular Sidemount rebreather in the world. Its compact size, combined with a low weight and a robust structure make the SF2 Sidemount a popular and reliable companion on exploration dives around the globe.

The basic components are taken from the SF2 Backmount version. The SF2 Sidemount has the same compact electronics chamber and inner bellows counterlung. The upper and lower tube are constructed of a very light, yet durable carbon fiber.




Middle Part

The SF2 Sidemount rebreather has a new middle part with a manual O2 and Diluent button. Also, the buttons are protected for external damage.

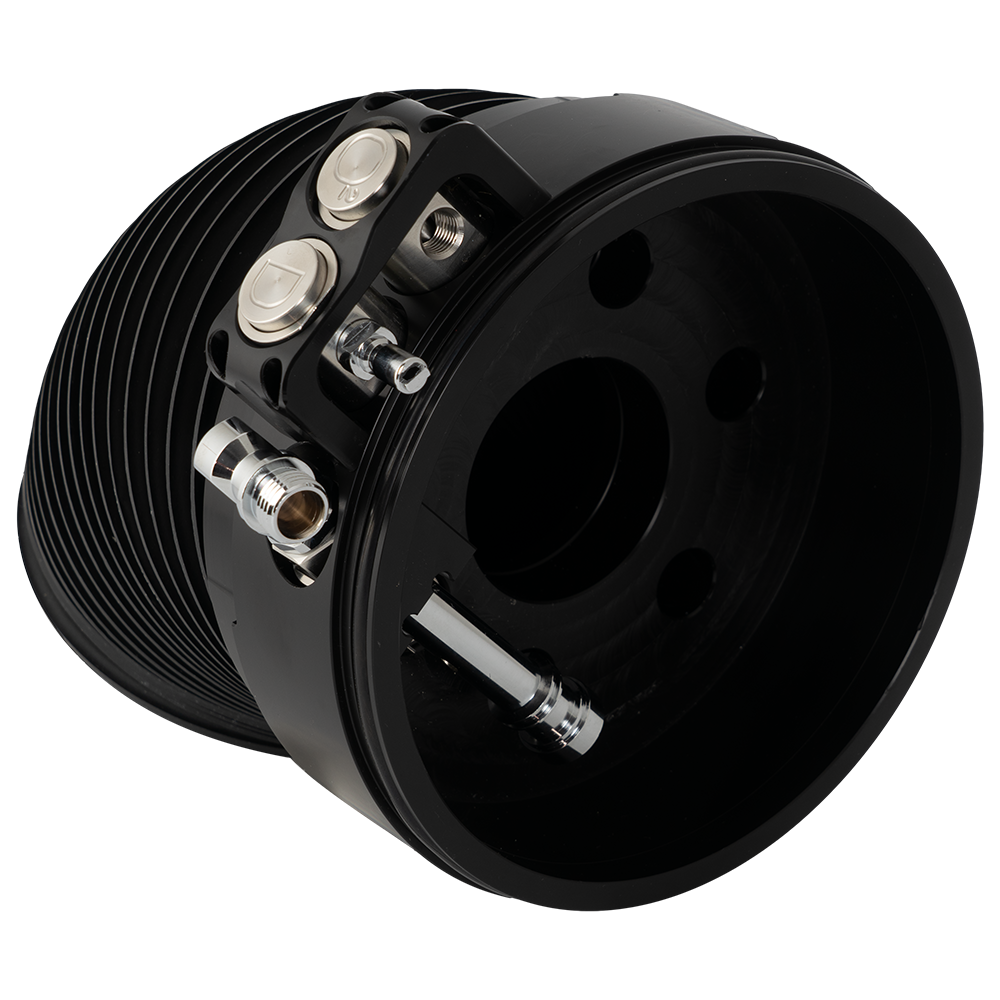

SF2 SIDEMOUNT MIDDLE PART


For the ideal use as a Sidemount rebreather the following adaptations were devised.

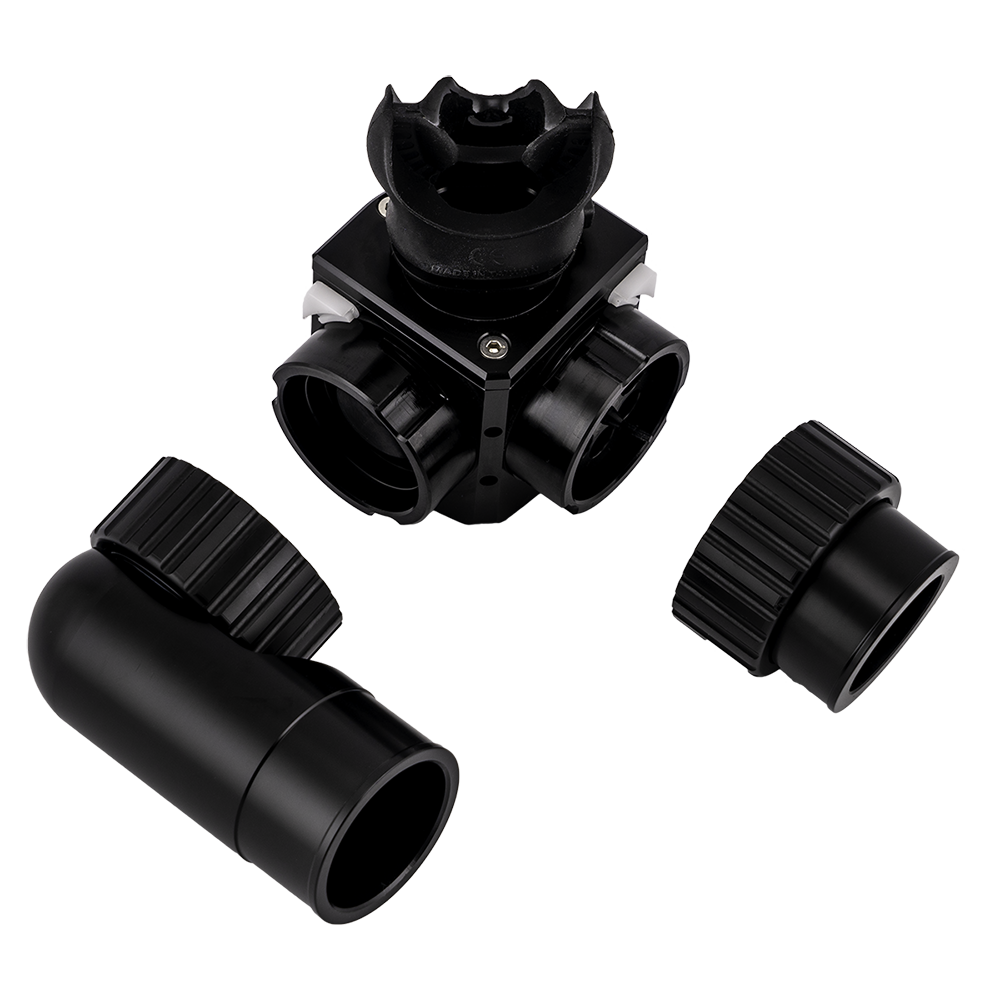

Side Mount Mouthpiece

The SF2 Sidemount rebreather has a DSV mouthpiece especially designed for the sidemount application. In collaboration with the best Sidemount divers in the world, we have developed a unique mouthpiece with excellent features:

  • Optimum hose feed
  • Extreme small design
  • Bayonet hose fittings mouthpiece
  • Rotatable
  • Right / left hand use
  • In water neutrally buoyant

SF2 SIDEMOUNT LOOP

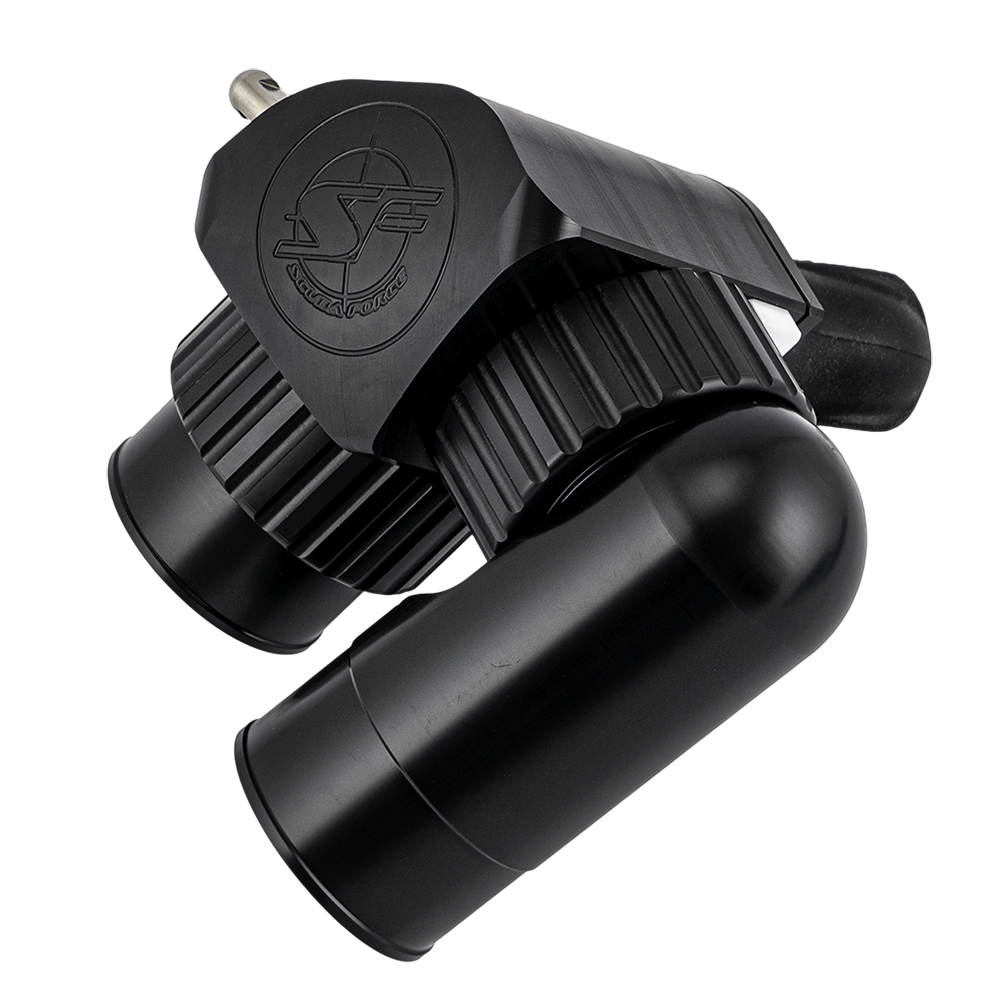

SF2 SIDEMOUNT MOUTHPIECE 3


Attachment

To configure the SF2 Sidemount rebreather as close as possible to the body, it has three attachment points.

We’ve designed a stainless steel rail at the top of the head and included two large Boltsnaps in the central region held via a hose clamp to allow for a streamlined attachment to your existing harness. The Boltsnaps can be varied in position, so that the rebreather can be positioned individually.



SF2 SIDEMOUNT ATTACHMENT








Pony Clamps

High quality marine grade rust-free stainless steel bracket to attach pony bottle or battery canister to main cylinder.

Extremely strong connection with quick release system.


PONY CLAMPS SMALL


PONY CLAMPS


FROM ONE TO TWO!

Backmount Conversion Kit

*for the latest sidemount units (2020)

From one to two!
The Backmount Conversion Kit is designed for this.
Quickly and easily allowing the diver to convert from sidemount to backmount. This option is unique to the SF2 rebreather and not available with other units.

Backmount Conversion Kit consists of:

  • Lower carbon tube with backmount frame
  • 2 Complete pony clamps
  • 4 x Stainless steel hose clip with protective cover
  • Complete backmount breathing loop  with backmount mouthpiece
  • Manual Adds & Off Board Gas Connector incl. hoses and Shut Offs
  • Double threaded connection
  • 1 x 90 Degree low pressure angle
  • 2 x Scubaflex hoses for Solenoid and ADV
  • Mid Part complete (incl. ADV, Bellow etc.)
BACKMOUNT CONVERSION KIT < 2020




Backmount Conversion Kit

*for sidemount units up to 2019

From one to two!
The Backmount Conversion Kit is designed for this.
Quickly and easily allowing the diver to convert from sidemount to backmount. This option is unique to the SF2 rebreather and not available with other units.

Backmount Conversion Kit consists of:

  • Lower carbon tube with backmount frame
  • 2 Complete pony clamps
  • 4 x Stainless steel hose clip with protective cover
  • Complete backmount breathing loop  with backmount mouthpiece
  • Manual Adds & Off Board Gas Connector incl. hoses and Shut Offs
  • Double threaded connection
  • 1 x 90 Degree low pressure angle
  • 2 x Scubaflex hoses for Solenoid and ADV
BACKMOUNT CONVERSION KIT
